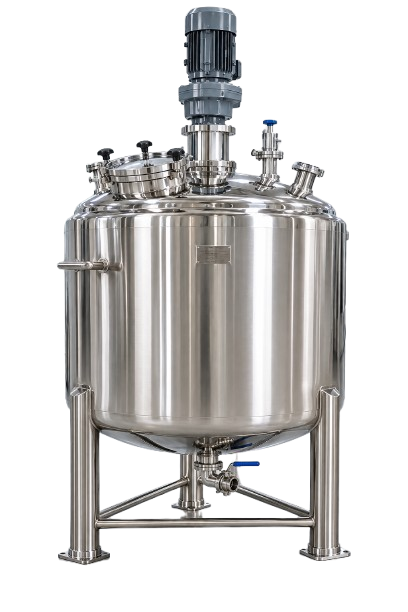

A Stainless Steel Dairy Mixing Tank is designed for hygienic mixing, blending, and preparation of milk, dairy ingredients, and liquid food products. Equilateral Solutions manufactures dairy mixing tanks in SS304, SS316, and SS316L stainless steel, with hygienic construction suitable for dairy, food, and beverage processing applications.
Available in capacities from 50 litres to 15,000 litres, our dairy mixing tanks can be customized according to batch size, process requirements, and production capacity.
Key Features
1. Material Selection
Manufactured using SS304, SS316, or SS316L stainless steel, our dairy mixing tanks feature hygienically finished product-contact surfaces. Internal surface finishes up to Ra ≤ 0.8 µm can be provided as specified in the project requirements.
2. Hygienic & GMP Design
Designed around hygienic and GMP engineering principles, the tanks feature smooth internal surfaces, sanitary connections, drainable bottoms, and CIP-compatible construction to support effective cleaning and product hygiene.
3. Agitation System
Top-entry, bottom-entry, or side-entry agitators can be provided based on the application. Agitator type, RPM, motor capacity, and impeller design are selected according to product viscosity, batch volume, and mixing requirements.
4. Heating & Cooling
Optional dimple, limpet coil, or conventional jackets can be incorporated for heating and cooling using steam, hot water, chilled water, or glycol, depending on the process requirements.
5. Instrumentation & Automation
Optional instrumentation and controls include level sensors, load cells, RTD temperature sensors, sanitary valves, variable frequency drives (VFDs), and PLC-HMI automation for controlled and efficient operation.
Applications
Our stainless steel dairy mixing tanks are suitable for a wide range of dairy and liquid food processing applications, including:
- – Milk mixing and standardization
- – Flavoured milk preparation
- – Milk powder reconstitution
- – Cream processing
- – Yogurt premixing
- – Ice cream mix preparation
- – Whey processing and dairy beverages
- – Sugar syrup and liquid food preparation
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 50 L to 15,000 L |
| Material of Construction (MOC) | SS304 / SS316 / SS316L |
| Design | Hygienic / GMP-oriented |
| Configuration | Vertical / Customized |
| Operating Condition | Atmospheric / Vacuum / Pressure, as specified |
| Internal Surface Finish | Up to Ra ≤ 0.8 µm |
| Agitator | Top / Bottom / Side Entry |
| Heating / Cooling | Jacketed – Optional |
| CIP System | Spray Ball / Rotary Cleaning Device |
| Connections | TC / SMS / DIN |
| Instrumentation | Level Sensor / Load Cell / Temperature Sensor |
| Control System | VFD / Local Panel / PLC-HMI |
| Design & Capacity | Fully Customizable |
Customized Dairy Mixing Tank Solutions
Equilateral Solutions provides customized stainless steel dairy mixing tanks tailored to specific processing requirements. Tank capacity, material grade, agitator configuration, heating and cooling arrangements, instrumentation, and automation can be selected according to your application.
Contact Equilateral Solutions to discuss your requirements for dairy mixing tanks and hygienic stainless steel process equipment.
