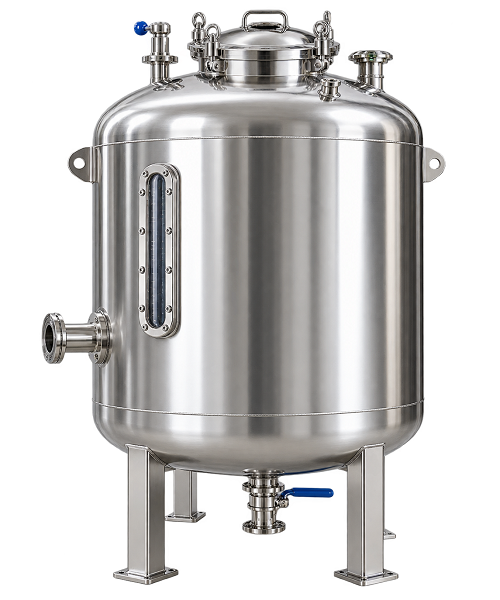

Stainless Steel Storage Tanks
Equilateral Solutions manufactures high-quality stainless steel storage tanks for hygienic storage and handling of liquids used in the pharmaceutical, food, dairy, and beverage industries.
Available in capacities from 50 litres to 10,000 litres, our storage tanks are manufactured in SS304, SS316, or SS316L stainless steel. Each tank can be customized according to product characteristics, storage conditions, installation requirements, and process specifications.
SS304 & SS316L Storage Tanks
SS304 stainless steel tanks are suitable for general food, dairy, beverage, and hygienic storage applications. SS316 and SS316L tanks can be supplied for pharmaceutical and demanding process applications requiring enhanced corrosion resistance and material compatibility.
Hygienic Construction
Our stainless steel storage tanks feature hygienic construction, smooth internal surfaces, and carefully fabricated welded joints to support effective cleaning and reliable operation. Polished product-contact surfaces and hygienic fittings are available according to application requirements.
Tank Configurations
Depending on the application and available installation space, storage tanks can be supplied in the following configurations:
- – Vertical stainless steel storage tanks
- – Horizontal storage tanks
- – Mobile storage tanks
- – Customized process storage vessels
Bottom configurations can include flat, sloped, conical, or dished designs based on drainage, storage, and process requirements.
Customized Design & Optional Features
Our stainless steel storage tanks can be customized with a range of optional features, including:
- Manholes and hygienic product outlets
- Sanitary fittings and connections
- Sight glasses and level sensors
- Load cells for weight monitoring
- CIP spray balls for internal cleaning
- Vents and optional agitators
- Thermal insulation and heating/cooling jackets
Instrumentation and accessories can be selected according to the stored product, operating conditions, and customer specifications.
Pharmaceutical Storage Applications
Our pharmaceutical stainless steel storage tanks are suitable for hygienic storage of:
- Purified water and process liquids
- Pharmaceutical solutions and syrups
- Intermediate products and buffer solutions
- Cleaning solutions and compatible process liquids
Food, Dairy & Beverage Applications
Our hygienic storage tanks are designed for storing a variety of liquid products, including:
- Milk and dairy products
- Liquid food products and beverages
- Sugar syrups and liquid ingredients
- Water and other compatible process liquids
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 50 L to 10,000 L |
| Material of Construction (MOC) | SS304 / SS316 / SS316L |
| Orientation | Vertical / Horizontal |
| Configuration | Mobile / Fixed / Customized |
| Bottom Design | Flat / Sloped / Conical / Dished |
| Internal Finish | As per application requirements |
| Connections & Fittings | Standard / Hygienic / Customized |
| CIP Arrangement | CIP Spray Ball – Optional |
| Instrumentation | Level Sensor / Sight Glass / Load Cell – Optional |
| Heating / Cooling | Jacketed – Optional |
| Insulation | Optional |
| Design & Capacity | Fully Customizable |
Customized Stainless Steel Storage Tank Solutions
Equilateral Solutions provides customized SS304, SS316, and SS316L storage tanks tailored to pharmaceutical, food, dairy, and beverage processing requirements. Tank capacity, orientation, material grade, fittings, cleaning arrangements, and optional accessories can be selected according to your application.
Contact Equilateral Solutions to discuss your requirements for stainless steel storage tanks and hygienic process equipment.
